Fine Dust Extraction Units

Shop the entire range of our Fine Dust Extraction Units.

Down Draft Table

Down Draft Table

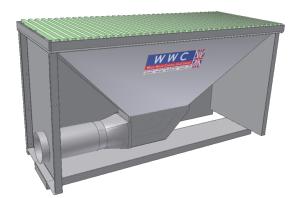

WWC Down Draft Extraction Table



  • WWC Down Draft Bench is a heavy duty extraction bench and is designed to be connected to a standard extraction system and is designed so that the majority of the dust generated whilst sanding is captured at the source whilst working.

    Hand and power sanding is one of the major causes of airborne dust in the working environment and this can be difficult to contain. Our Down Draft table will extract and capture the majority of the hazardous dust before it becomes airborne. Having the Down Draft Table will greatly improves the working environment for all.

    • Working Area 2200mm Long x 1000mm Wide x 890mm Height
    • 200mm Connection
    • 2312 m/hr airflow requirement
    Manufactured in the UK by Wood Waste Control Engineering Limited

    Delivery Options - (10 to 14 Working Days)
    • Dedicated Van is based on 100 mile radius from our works in High Wycombe. If distance is greater than 100 miles please phone the office for a quotation. 01628 529122
    • Collection

Fine Dust Filter Boxes

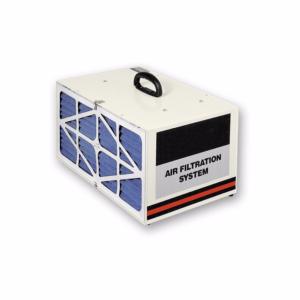

Fine Dust Filter BoxesWWC 500 Air Filtration System

  • Quietly cleans and filters the air while you work or when finished
  • Filters particles at 98% 5 microns in size and 85% 1 micron in size
  • 3 speed settings and 3 timer settings, remote or manual control
  • Use with your dust extractor for maximum dust control
  • Comes as standard with an electrostatic pre- filter and pocket filter
  • Filters can be carefully vacuum cleaned, or easily replaced

Quietly Cleans the air whilst you work.

This filter box has been designed for medium to large workshops and can be positioned almost anywhere, on a bench, a shelf or even suspended from the ceiling.

The WWC 500 has 3 speed settings depending on the size of your workshop space.

It works best if you leave it running for a few minutes when your machines have been turned off or use the built in timer to run the filter after you leave.


Four Bin Fine Dust Extraction

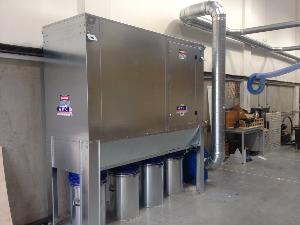

Four Bin Fine Dust ExtractionFD4-10T Multi-Pocket Unit

FD4 10hp Model T is a four bin fine dust extraction unit which delivers powerful extraction and can handle most types of fine dust.

FD4 10hp Model T is complete with an Inside Roof.

FD4 10hp Model T can extract from the following machine connections

  • 1 x 300mm machine outlet
  • 1 x 250mm, 1 x 150mm machine outlets
  • 2 x 200mm machine outlets
  • 4 x 150mm machine outlets
  • 6 x 125mm machine outlets
  • 9 x 100mm machine outlets

Unit comes as standard with the following

  • 36 Cloth Needlefelt Filter Bags
  • 300 Square Feet of Filter Area
  • 4 Metal Collection Bins
  • Automatic Cleaning with a Shaker Motor
  • Enclosed Top Section
  • Inside Roof Panel
  • Silenced Scroll around the Inlet
  • 10hp Motor
  • 7.5kw Push Button Starter
  • 6mm Mild Steel Impeller

Please note:  This Extracting Unit is suitable for fine dust and wood chips





Three Bin Fine Dust Extraction

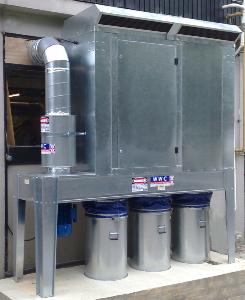

Three Bin Fine Dust ExtractionFD3-7.5T Multi-Pocket Unit

FD3 7.5hp Model T is a three bin fine dust extraction unit which delivers powerful extraction and can handle most types of fine dust.

FD3 7.5hp Model T is complete with an Inside Roof.

FD3 7.5hp Model T can extract from the following machine connections

  • 1 x 250mm machine outlet
  • 1 x 200mm, 1 x 150mm machine outlets
  • 3 x 150mm machine outlets
  • 4 x 125mm machine outlets
  • 6 x 100mm machine outlets

Unit comes as standard with the following

  • 27 Cloth Needlefelt Filter Bags
  • 225 Square Feet of Filter Area
  • 3 Metal Collection Bins
  • Automatic Cleaning with a Shaker Motor
  • Enclosed Top Section
  • Inside Roof Panel
  • Silenced Scroll around the Inlet
  • 7.5hp Motor
  • 5.5kw Push Button Starter
  • 6mm Mild Steel Impeller

Unit Specification

  • Length @ 2500mm, Width @ 700mm, Height @ 2560mm
  • 250mm Inlet Diameter
  • 7.5hp - 5.5kw Motor
  • 3 phase - 415v - 50hz

Please note:  This Extracting Unit is suitable for fine dust and wood chips



Two Bin Fine Dust Extraction

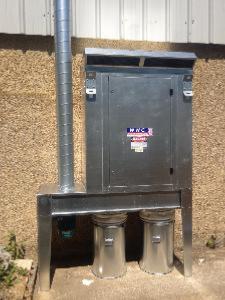

Two Bin Fine Dust ExtractionFD2-5.5TH Multi-Pocket Unit (Inside)

  • 1 x 200mm machine outlet
  • 2 x 150mm machine outlets
  • 3 x 125mm machine outlets
  • 4 x 100mm machine outlets

    FD2 5.5hp Model TH is a two bin fine dust extraction unit which delivers powerful extraction and can handle most types of fine dust.

    FD2 5.5hp Model TH is complete with an Inside Roof panel.

    FD2 5.5hp Model TH can extract from the following machine connections

Unit comes as standard with the following

  • 18 Cloth Needlefelt Filter Bags
  • 196 Square Feet of Filter Area
  • 2 Metal Collection Bins
  • Automatic Cleaning with a Shaker Motor
  • Enclosed Top Section
  • Inside Roof Panel
  • Silenced Scroll around the Inlet
  • 5.5hp Motor
  • 4kw Push Button Starter
  • 6mm Mild Steel Impeller

Unit Specification

  • Length @ 1850mm, Width @ 700mm, Height @ 3010mm
  • 200mm Inlet Diameter
  • 5.5hp - 4kw Motor
  • 3 phase - 415v - 50hz

Please note:  This Extracting Unit is suitable for fine dust and wood chips
