FINE DUST EXTRACTOR UNITS

The FD range of collector units from Wood Waste Control is ideal for a wide range of fine dust applications with an extraction requirement of between 1,000 to 8,000 m3/hr.

Each extraction unit is sold fully assembled and comes in a self-contained compact footprint, ideal to be installed inside or outside without losing valuable floor space.

All FD extraction units come with a shaker unit that automatically cleans the filter bags, reducing the need for expensive compressed air systems and prolonging the lifespan & efficiency of the filters.

New to 2016 is the new TH range adding extra filter area.

Suitable for all wood products such as MDF, MFC, Hard Wood, softwood and more..









Ask us about this product

Key Features

Exceptional performance on fine dust and chippings.

Robust Impellor for contiued use.

Huge filter area wih space saving features

Can be easily configured to suit your needs

Automatic filter bag cleaning as standard.

Features:

  • Compact Design, can be installed as a central system or deployed at    the point of dust generation.
  • Versatility, Different configurations available to suit a variety of            applications.
  • Easy to assemble galvanised steel construction.
  • Automatic filter bag cleaning as standard.
  • ATEX explosion relief panel
  • Can be located inside or outside if required.
1




Typical Applications:

  • Wood Working Industries
  • Grinding, Buffing & Sanding Applications
  • Plastic & Composite Manufacturers
  • Food & Pharmaceutical powders

The FD Extraction systems are certified according to the latest ATEX European Directive for explosive dust.




Click an Image for more details

FD 1

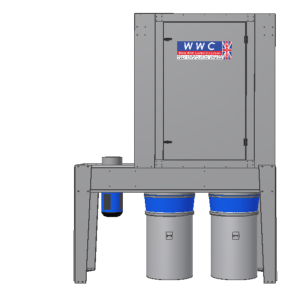

FD 2

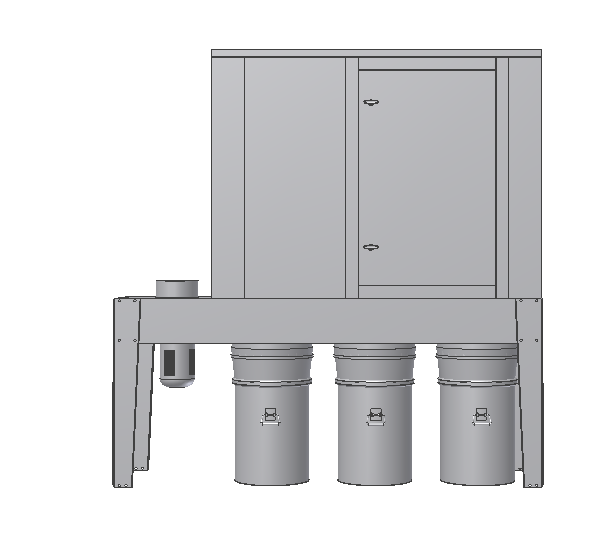

FD 3

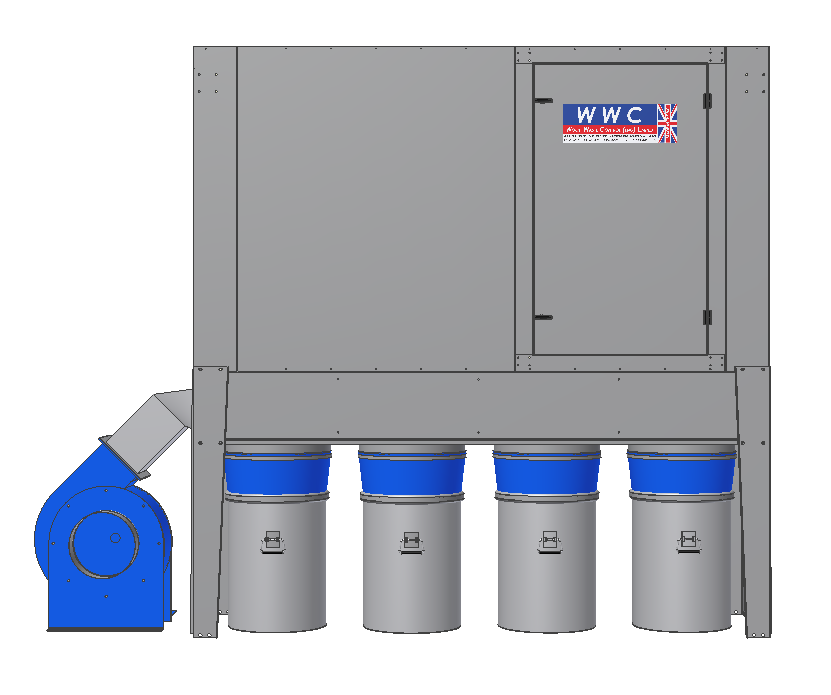

FD 4 & FD 5
