FB Bagging Extraction Units

The FB range of bagging units delivers a powerful solution for nearly all types of swarf and wood chip removal.

The portable, practical and multipurpose FB1 unit has been designed to serve several workstations quickly and efficiently, with its ability to be moved directly to the source of the waste generation.

The larger FB units are ideal for workshops with a requirement to extract from 3 or more machines simultaneously.

All units are supplied with heavy duty collection bags & high quality terylene needlefelt filter bags as standard.

Features:

  • Robust, Powerful & Portable.
  • 600 - 3250 CFM (1020 - 5521m3/h) Air Flow.
  • 150mm Dia Inlet
  • 6mm Mild Steel Impellor.
  • Complete with Start/Stop Controller


Typical Applications:

  • Wood working & Timber industries.
  • Furniture production plant waste management.
  • Bulk materials manufacturers.

This unit is not suitable for high levels of just dust waste or MDF.

Click here to modify the text

Click here to modify the text

Specification Sheet

MODEL

FB 1 - 1

FB 1 - 2

FB 1 - 3

POWER

1Kw - 1.5HP - 430v -50hz

1.5Kw - 2HP - 430v -50hz

2.2Kw - 3HP - 430v -50hz

INLET (Dia)

125mm

150mm

150mm

PERFORMANCE ***

1020m³/h (600 CFM)

1868m³/h (1100 CFM)

2038m³/h (1200 CFM)

DIMENSIONS (mm)

900 L x 500 W x 2500 T

900 L x 500 W x 2500 T

900 L x 500 W x 2500 T

***  Performance.  Please do not compare this with competitors figures.  Most competitors use 'free air' figures.  This means that resistance from the filter bag, ductwork etc, has not been taken into account.  We recommend looking at our specification sheet for fan curves.


MODEL

FB 2 - 4

FB 2 - 5.5

POWER

3Kw - 3HP - 430v -50hz

4Kw - 5.5HP - 430v -50hz

INLET (Dia)

200mm

200mm

PERFORMANCE ***

3058m³/h (1800 CFM)

3398m³/h (2000 CFM)

DIMENSIONS (mm)

1650 L x 585 W x 2500 T

1650 L x 585W x 2500 T

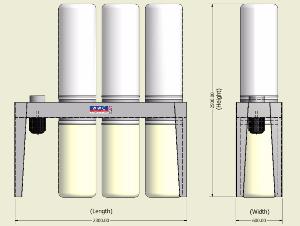

MODEL

FB 3 - 5.5

FB 3 - 7.5

POWER

4Kw - 5.5HP - 430v -50hz

5.5Kw - 7.5HP - 430v -50hz

INLET (Dia)

250mm

250mm

PERFORMANCE ***

4077m³/h (2400 CFM)

4672m³/h (2750 CFM)

DIMENSIONS (mm)

2950 L x 600 W x 2500 T

2950 L x 600 W x 2500 T

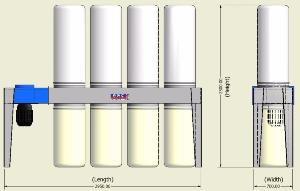

MODEL

FB 4 - 7.5

FB 3 - 10

POWER

5.5Kw - 7.5HP - 430v -50hz

7.5Kw - 10HP - 430v -50hz

INLET (Dia)

300mm

300mm

PERFORMANCE ***

4672m³/h (2750 CFM)

5521m³/h (3250 CFM)

DIMENSIONS (mm)

2950 L x 600 W x 2500 T

2950 L x 600 W x 2500 T
