Four Bag Extractor |
 FB4-10 Four Bag Extractor
The FB4-10hp Four Bag extractor delivers a powerful solution for nearly all types of swarf and wood chip removal.
Unit comes as standard with the following
- 4 Cloth Needlefelt Filter Bags
- 20 Heavy Duty Polyurethane Waste Bags
- 6mm Mild Steel Impeller
Unit Specification
- Length @ 2950mm, Width @ 700mm, Height @ 2500mm
- 300mm Inlet Diameter
- 10hp - 7.5kw Motor
- 3 phase - 415v - 50hz
- Air Flow @ 5521 M³/hr* (Meters Cubed Per Hour)
Manufactured in the UK by Wood Waste Control Engineering Limited
*A lot of our competitors show a 'free air' volume. This is unrealistic as its calculating air flow without any resistance from ductwork, machinery, flexis and filters etc.. If in doubt please contact us. Our stated duty is with 2000pa of resistance
|
|
One Bag Extractor |

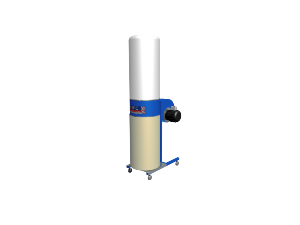

 FB1-2 One Bag Extractor
The FB1-2 HP Single Bag Extractor delivers a powerful solution for nearly all types of swarf and wood chip removal.
Ideal for your wood working machines such as saws, planers, spindle moulders, bandsaws etc
Unit and Accessories supplied:-
- 1 Needlefelt Filter Cloth Bag (Part No: FX500-1250)
- 5 Heavy Duty Polyurethane Waste Bags (Part No: POLYBAG-PRINT)
- 6mm Mild Steel Heavy Duty Impeller
- 4 Castor Wheels making the Unit Mobile
Manufactured in the UK by Wood Waste Control Engineering Limited. An extraction unit built to last.
Delivery Options From Our Works HP10 - (5 to 7 Working Days)
- Dedicated Van - 100 Mile Radius @ £150.00
- Dedicated Van - 150 Mile Radius @ £225.00
- Dedicated Van - 200 Mile Radius @ £300.00
- Dedicated Van - 250 Mile Radius @ £375.00
- Collection
Please note: This extractor is not suitable for fine dust
|
|
Three Bag Extractor |
 FB3-7.5 Three Bag Extractor
The FB3-7.5hp Three Bag extractor delivers a powerful solution for nearly all types of swarf and wood chip removal.
Unit comes as standard with the following
- 3 Cloth Needlefelt Filter Bags
- 15 Heavy Duty Polyurethane Waste Bags
- 6mm Mild Steel Impeller
Unit Specification
- Length @ 2300mm, Width @ 585mm, Height @ 2500mm
- 250mm Inlet Diameter
- 5.5hp 4kw Motor
- 3 phase - 415v - 50hz
- Air Flow @ 4672 M³/hr* (Meters Cubed Per Hour)
*A lot of our competitors show a 'free air' volume. This is unrealistic as its calculating air flow without any resistance from ductwork, machinery, flexis and filters etc.. If in doubt please contact us. Our stated duty is with 2000pa of resistance. |
|
Two Bag Extractor |

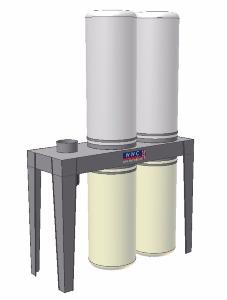

 FB2-5.5 Two Bag Extractor
The FB2 - 5.5hp Two Bag extractor delivers a powerful solution for nearly all types of swarf and wood chip removal.
Unit comes as standard with the following
- 2 Cloth Needlefelt Filter Bags
- 10 Heavy Duty Polyurethane Waste Bags
- 6mm Mild Steel Heavy Duty Impeller
Unit Specification
- Length @ 1650mm, Width @ 585mm, Height @ 2500mm
- 200mm Inlet Diameter
- 3 phase - 415v - 50hz
- Air Flow for our @ 3400 M³/hr* (Meters Cubed Per Hour)
Delivery Options
- Dedicated Van - 100 Mile Radius @ £150.00
- Dedicated Van - 150 Mile Radius @ £225.00
- Dedicated Van - 200 Mile Radius @ £300.00
- Dedicated Van - 250 Mile Radius @ £375.00
- Collection
|
|
