Dust & Fume Extraction Systems

FD 3 Three bin fine dust unit

Model

Features

FD 3

  • ATEX Panel
  • Automatic Filter Bag Cleaning
  • Control Panel Included
  • Totally Cladded Body




options

  • Internal or External Roof
  • Collection bins or bags
  • Silencing Kit




delivery

  • 1 to 3 Weeks Lead time
  • Two Shipping options.  Build up or in 2x Halfs




Download a data sheet

Ask us about this product

Ask us about this product

Key Features

Small & Compact Filter Unit

Duty from 500 to 2,000 m3/hr.

6mm Mild Steel, Dynamically Balanced & efficient impeller.

Start/Stop & Auto Clean Controller.

Low Noise Levels

FD 3 - IN detail

Wood Waste Control's most popular extraction unit designed to extract fine dust, fumes and other types of waste.  Can be deployed at the source of the contamination or as a central system serving more than one machine.


Two motor options are available 4kW or 5.5kW 3 phase powering a 6mm mild steel paddle blade impeller.

The FD 3 can be tailored to suit individual requirements, such has an internal or external roof, collection bins or collection bags, silencing kit and optional A.T.E.X explosion relief panel.


This extractor is suitable for Sanders, spindles, routers, small CNC wood working machines and our models T and TH use tubular filter bags that can also handle shavings, chips and other such waste.

1

1

Typical Applications:

  • Wood Working Industries

  • Timber Industries

  • Furniture production & plant waste management

  • Bulk materials manufacture






FD 3- Dimension

Model

FD 3 - 5.5 E

FD 3 - 5.5T

FD 3 - 5.5 TH

FD 3 - 7.5 E

FD 3 - 7.5 T

FD 3 - 7.5 TH

Power

4kW - 430v - 50hz  3ph

4kW - 430v - 50hz  3ph

4kW - 430v - 50hz  3ph

5kW - 430v - 50hz  3ph

5kW - 430v - 50hz  3ph

5kW - 430v - 50hz  3ph

Inlet

250

250

250

250

250

250

Dimensions

2500mm L x 700mm W x 2250mm H

2500mm L x 700mm W x 2560mm H

2500mm L x 700mm W x 3175mm H

2500mm L x 700mm W x 2250mm H

2500mm L x 700mm W x 2560mm H

2500mm L x 700mm W x 3175mm H

E = Envelope Filter - Small dust particals only

T = Tubular Filters

TH = Tubular Filters Extra High

You can purchase this here.

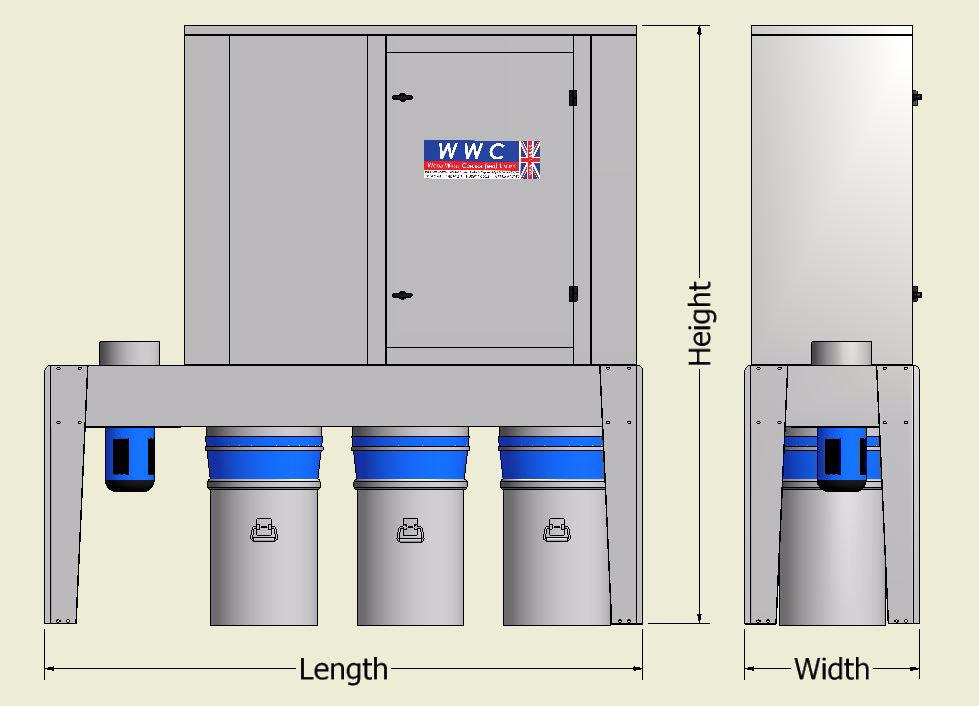

FD 3 - Dimensions
