Wood Waste control WWH - 5 Wood fired heater


This is the smallest of the double pass heat exchange models and is fully exempt appliance to burn chipboard, MDF, hardwood and softwood offcuts without the need of a costly afterburner.

Can be used in city centers and built up residential areas.

With a fully refractory lined firebox and highly efficient double pass heat exchange with fully welded heat recovery fins the WWH 5 produces 150,000btu/hr which is ideal for workshops around 4000ft2.

How much will it burn?

 About 400 – 650kg per week depending on fuel.

(10 – 15kg per hour)













1






Download a data sheet

Ask us about this product

Ask us about this product

Standard Features

- Fast Hydraulic- Profile Rotor.- Second Row of Knives- Control cabinet with          Siemens PLC- Automatic stop when hopper empty.- Removable exhausting    channel- Performance enhancing    pacing of hydraulic sliders

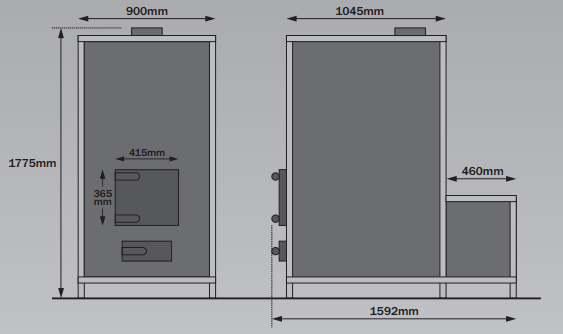

wwh 5 - technical details

Specifications:

  • Heat output:          47Kw / hour – 160,000 BTU / Hour

  • Air Volume:           3010 m3/hr

  • Weight:                   710 kg

DEFRA APPROVED.
