reinbold RB 400 RS  - Square briquettes

The Reinbold briquetting press RB 400 S - reliable and efficient briquetting technology for the production of square briquettes for the reduction in volume or thermal recycling
The excellent packing density of the square briquettes is ideal for storage or transportation. In addition, the high-compression briquettes have a very good combustion behavior.

All compressible materials, such as wood chips, wood dust are highly compressed in a matrix.

Thus, the briquette produced is dimensionally stable and solid. The briquettes are expelled each other. A 30 kW motor drives the hydraulic axial piston pump and is able to produce per minute up to 7 briquettes. The throughput depends on the specific weight of the material.

The briquetting press can be supplied with a container of 1,400 x 1,400 mm. In addition, there are many technical features available, such as a control for the briquetting press.


Download a data sheet

Ask us about this product

Ask us about this product

Standard Features

- Fast Hydraulic- Profile Rotor.- Second Row of Knives- Control cabinet with          Siemens PLC- Automatic stop when hopper empty.- Removable exhausting    channel- Performance enhancing    pacing of hydraulic sliders

Maximum material moisture should not exceed 18%.

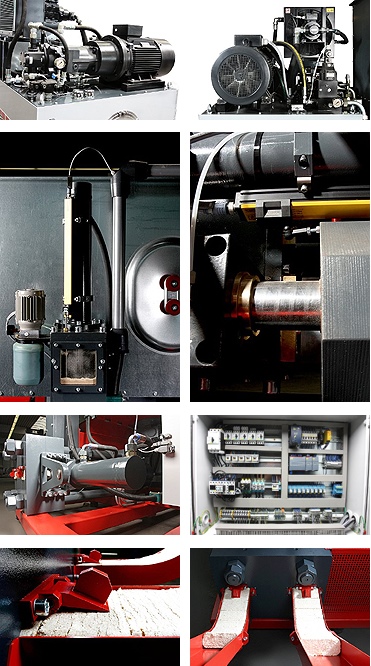

reinbold azr RB 400 in detail


Briquette Diameter  (mm)

Throughput  (approx. kg/h)

Hydraulic Motor (kW)

Auger Motor (kW)

Agitator (kW)

Amount of oil (l)

Weight (approx. kg)**

RB 400 S

150 x 60

300 - 400 *





3,500 **

*Throughput is material dependent / ** total weight, deviations are possible depending on the design.

Maximum material moisture should not exceed 18%
