reinbold RB 100 to 200 Briquette Presses

RB 100 - 200 and RB 100 - 200 plus series
for high throughput.

Both series have the same compaction unit, in order to produce high-strength briquettes. The difference is the extra large, high capacity container for the RB 100 - 200 plus series.

Numerous options are available:
- Oil cooling for continuous operation
- Transmission lines
- Briquette length monitoring
- Automatic on/off
- Switch for oil shortage
- Hopper attachments, and other material, such as straw, hay, Styrofoam...













1






Download a data sheet

Ask us about this product

Ask us about this product

Standard Features

- Fast Hydraulic- Profile Rotor.- Second Row of Knives- Control cabinet with          Siemens PLC- Automatic stop when hopper empty.- Removable exhausting    channel- Performance enhancing    pacing of hydraulic sliders

Maximum material moisture should not exceed 18%.     The output unit can be ordered on Left or Right of the hopper.


1 = Large reserve container with high-quality discharge unit.(Agitator discharge with integrated screw conveyor)

2 = All mechanical movements can be performed manually using the hand controls on the switching cabinet. The PLC controls ensure user friendly, fully automatic operation.

3 = Hardened, replaceable compressor channel bushings are standard equipment on all of the machines.

4 = Automatic opening of the tongs ensures trouble-free, constant briquettes production.

5 = Hydraulic drive with a power rating of up to 22 kW Optional: Oil cooling, low oil switch, and oil temperature measurement unit.

6 = Filling cylinder

7 = Hydraulically controlled press cylinder

8 = Automatic strand length monitoring

9 = Automatic on/off (option)

1

These presses have high-volume reserve containers with an integrated screw conveyor. The material passes through the screw conveyor into the filling shaft, where it is pre-compacted in the filler cylinder before being conveyed to the press channel. In the channel, the press cylinder presses the material to be compacted into the conically closed tongs until it achieves the desired briquette hardness. Then the tongs open and the briquette is ejected.


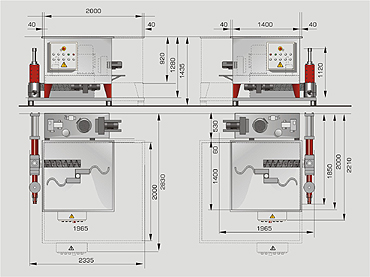

reinbold azr RB 100 - 200 &  tHE pluS SERIES

Briquette extension (optional)







The fully automatic delivery unit is installed at the base of the storage tank. This unique worm precompactor ensures a consistent briquette length.

2

1

Optimised pressing results are achieved with the cylindrical pressing chamber. The hydraulic filler cylinder compresses the material at high pressure into a compact briquette



1

The hydraulic unit provides the press with power. Specification according to requirements and application.

2

Two high-powered motors drive the screw compressor and the delivery unit



The filling level gauge (automatic ON/OFF) guarantees fully automatic operation.

2

The strand length monitor ensures a constant, high production rate of briquettes, even after a change of materials.There is also a possibility for connecting transport pipes.

2

Model

Hooper Size:

Briquette Diameter

Throughput

Hydraulic Motor

Oil Quantity

Weight

.

mm

mm

Approx kg/h

kW

L

Approx kg

RB 100

1400 x 1400 x 920

50

80 - 100

7.5

100

870

RB 120

1400 x 1400 x 920

60

80 - 120

7.5

160

1000

RB 160

1400 x 1400 x 920

70

120 - 160

11

160

1050

RB 200

1400 x 1400 x 920

80

160 - 200

11

250

1250

Model

Hooper Size:

Briquette Diameter

Throughput

Hydraulic Motor

Oil Quantity

Weight

.

mm

mm

Approx kg/h

kW

L

Approx kg

RB 100 PLUS

2000 x 2000 x 920

50

80 - 100

7.5

100

1050

RB 120 PLUS

2000 x 2000 x 920

60

80 - 120

7.5

160

1200

RB 160 PLUS

2000 x 2000 x 920

70

120 - 160

11

160

1250

RB 200 PLUS

2000 x 2000 x 920

80

160 - 200

11

250

1450
