reinbold AZR 1000 - 2000 S Range of Single shaft shredder

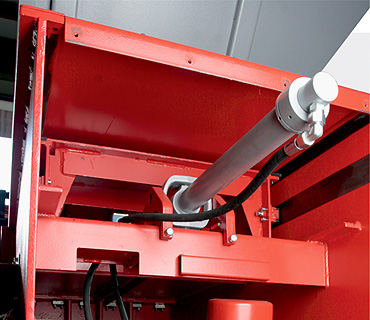

Hydraulic cylinders suspended by cardan joints are used to prevent the service life of piston cups being shortened.

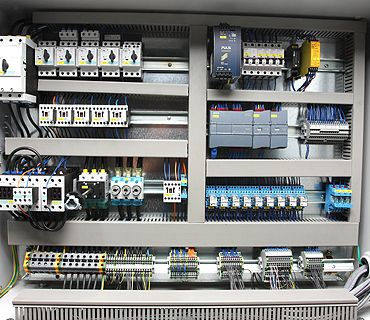

All machines can be operated using a programmable control system (e.g. flow control, feed control, automatic switching-off if empty hopper is detected, etc.)

Hydraulic feed to ensure constant material feed to the rotor..

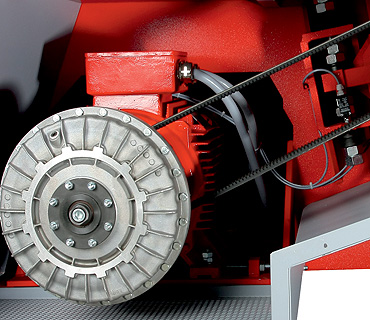

Powerful drives from 9.2 to 150 kW depending on the performance requirements. A high degree of efficiency due to turbo coupling (from 22 kW)

The following parameters are applicable to all machines of the AZR range:

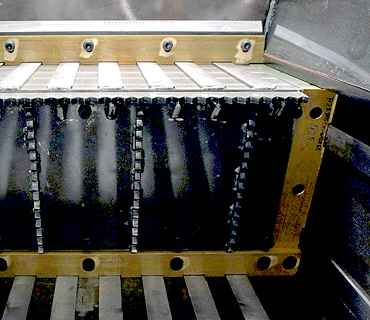

Perforation Size:

The standard size is 15/20 mm.
Optional sizes (mm):

10/12, 12/15, 20/25, 25/30, 35/40

Special sizes on request.

Throughput rate:

This parameter depends on the type of material to be handled (long, short, wet, dry, etc.) as well as the size of the screen perforation.  A machine usually processes between two to four hopper fillings per hour.  For more info please refer to our guide.

Removal of chips:

For this purpose you can use one of our extractor and extract the waste or alternatively you can use either a screw conveyor or conveyor belt.

The minimum air speed required is 28 m/s.

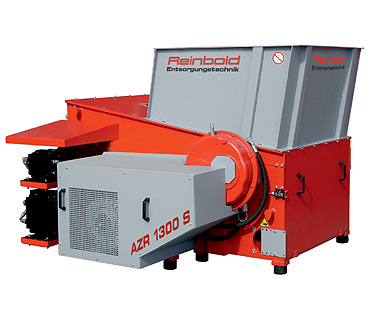

reinbold azr 1000 - 2000 S - technical details

Type

Hopper opening

Hopper volume

Throughput rate

Rotor dia

Rotor Speed  approx

Power consumption

Tools

Screen perforation

Extraction port - Dia

Air Speed

Weight           approx

mm

m3

.

mm

UpM

kW

Pcs

mm

mm

m/sec

kg

  AZR 1000 S

1000 x 1200

1,0

Check Guide

354

90

22/30/37/45

25/50/75

10-40

200

28

1,900

AZR 1300 S

1300 x 1200

1,65

Check Guide

354

90

37/45/55

33/66/99

10-50

250

28

3,800

AZR 1500 S

1500 x 1500

2,3

Check Guide

354

90

37/45/55/75/2x45/2x55

37/74/112

10-50

250

32

4,500

AZR 1800 S

1800 x 1500

2,8

Check Guide

354

90

45/55/90/2x45/2x55

45/90/135

10-50

250

32

5,800

AZR 2000 S

2000 x 1500

3,0

Check Guide

354

90

45/55/90/2x45/2x55

49/98/147

10-50

250

32

6,500

* Please contact us for assistance in selecting the tool which is best suitable for your application profile.
