reinbold AZR 50 Primus - Single shaft shredder


The AZR 50 Primus is the entry model in the AZR range, but dont be fooled this machine is still powerful and able to process a large range of waste materials.The AZR 50 is a compact single shaft shredder designed for small to medium sized companies generating high volumes of waste.

Capable of processing materials such as softwood, chipboard, MDF and even harwoods, thanks to sturdy construction and slow runnning motors.

Not only is the AZR 50 robust, it also benefits from high throughput rates, excellent reliability, operator friendly, easy maintenance and low operation costs.













1



Download a data sheet

Ask us about this product

Ask us about this product

Standard Features

- Fast Hydraulic- Profile Rotor.- Second Row of Knives- Control cabinet with          Siemens PLC- Automatic stop when hopper empty.- Removable exhausting    channel- Performance enhancing    pacing of hydraulic sliders


reinbold azr 50 primus - technical details

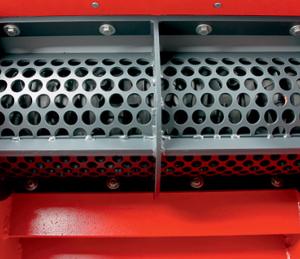

AZR 50 Screen perforation

The screen perforation determines the size of the shreds

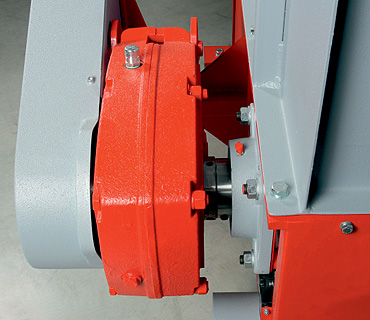

Belt Drive and spur gear

Belt drive – spur gear reduction

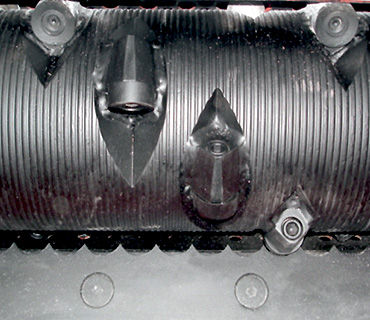

Round Cutting Knives for shredders

The highly efficient scissors cut of the concave ground circular cutting heads enable a very high work rate with very little effort. The knife holders are welded on the rotor and the round knives can be turned up to 8 times with just a few adjustments before having to be exchanged completely.

2

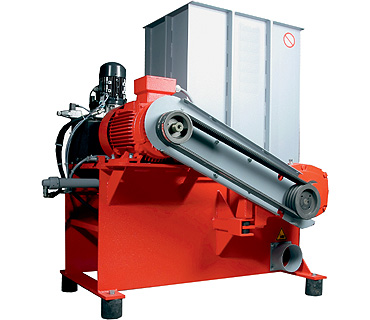

Hydraulic Unit

Hydraulic unit and the hydraulic cylinder for the drawer. Hydraulic feed for a constant flow of material to the rotor and for continuous shedding.
