FB 4Four bag Extraction Unit

Wood Waste Control heavy duty Four bag dust and chip extractor.

The FB 4 delivers a powerful solution for nearly all types of swarf and wood chip removal.

This machine has been designed for medium to large workshops with the need to extract from 3 or more machines simultanously.

As will all our FB range units, this 4 bag extractor's inlet can be installed facing up or facing down to suit the customers requirements.

Special baffle gates are included as standard to balance the waste equally into the heavy duty collection bags.

Download a data sheet

Ask us about this product

Ask us about this product

Key Features

Robust and Powerful.

Duty from 4,250 to 5,500 m3/hr.

6mm Mild Steel, Dynamically Balanced & efficient impeller.

Complete D.O.L Start/Stop Controller.

Low Noise Levels

FB 4 - IN detail

Since 2015, Wood Waste Control now manufature the FB 4 unit is one piece.  The old model would have a standalone fan which was bolted on the side.  The new version, works more efficient, easier to construct and helps reduce the maintenance required on the older model.

Each unit is supplied with 4 cloth filter bags, a pack of 25 polythene collection bags and D.O.L or A.S.D start / Stop controller.

We do not recommend the use of these types of units when using very fine dust, even with fine dust filter cartridges attached.   This is due to the high risk of explosions that could potentially happen.  These type of units have no safe panels or cladding to protect the users.   We recommend our FD type of filter for fine dust.1




Typical Applications:

  • Wood Working Industries

  • Timber Industries

  • Furniture production & plant waste management

  • Bulk materials manufacture

Please note: We do not recommend you use these for use with high levels of fine dust or MDF type products.


FB 3 - Dimension

Model

FB 4 - 7.5

FB 4 - 10

Power

5kW - 430v - 50hz  3ph

7.5kW - 430v - 50hz  3ph

Inlet

300

300

Dimensions

2950mm L x 700mm W x 2500mm H

2950mm L x 700mm W x 2500mm H

You can purchase this here.

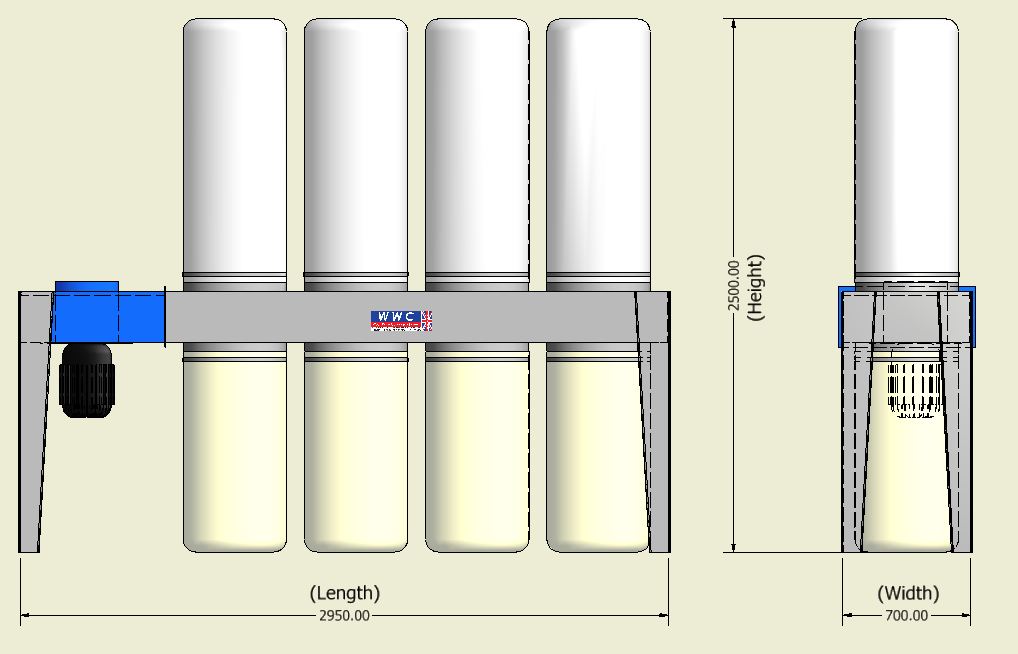

FB 4 - Dimensions
